SPECIFICATIONS

Brand Name: NONE

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: none

Installation Method: self-contained

Is it electrified: No

Origin: Mainland China

Details:
Waterproof  Seal: This product is equipped with a waterproof rubber seal that prevents water from backing up into the generator and bearings, providing great safety and extending its life.
Practical Bearing: The impeller outlet is fitted with a bearing to stabilise the rotation of the impeller, which makes the product less likely to rock and tip over.

Application:

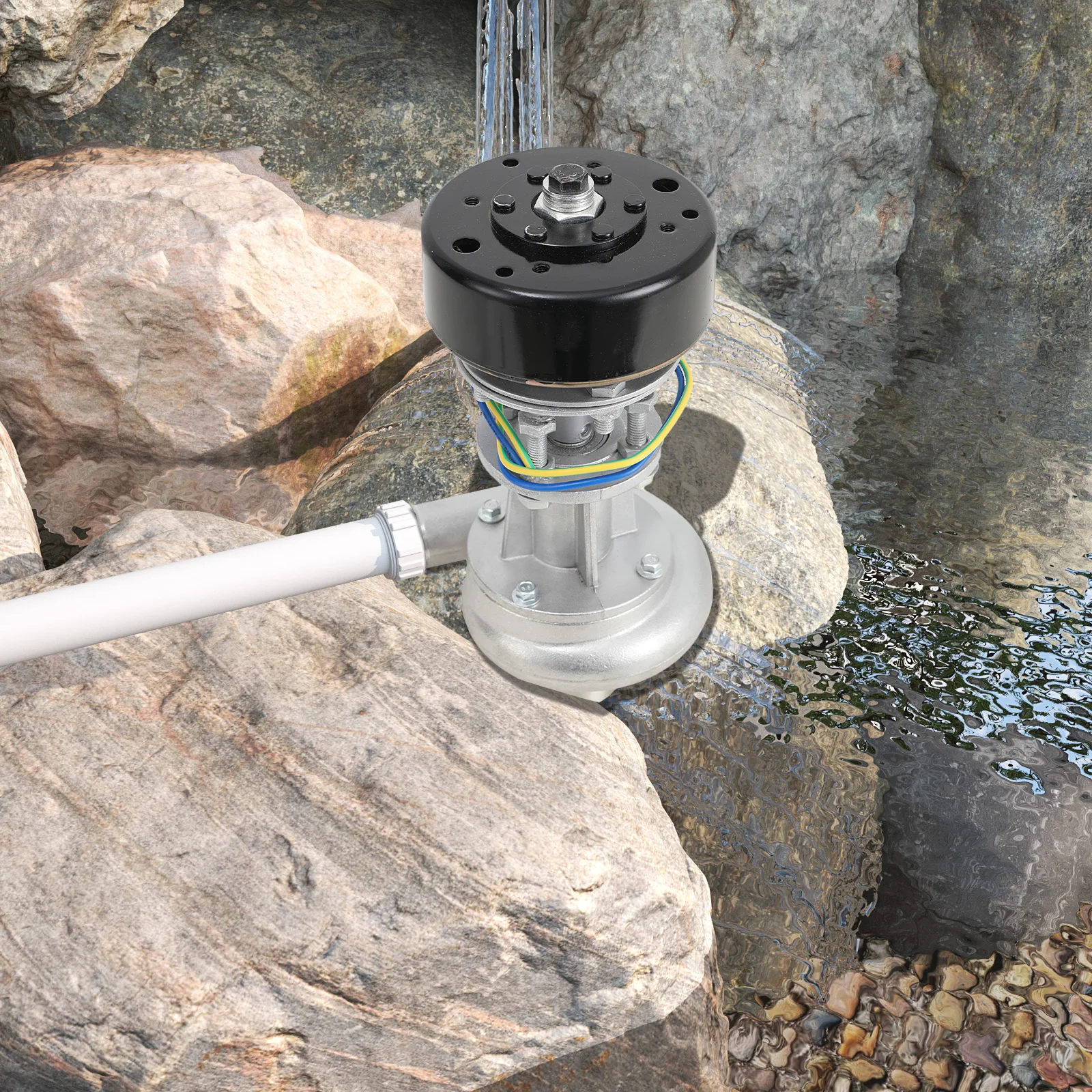

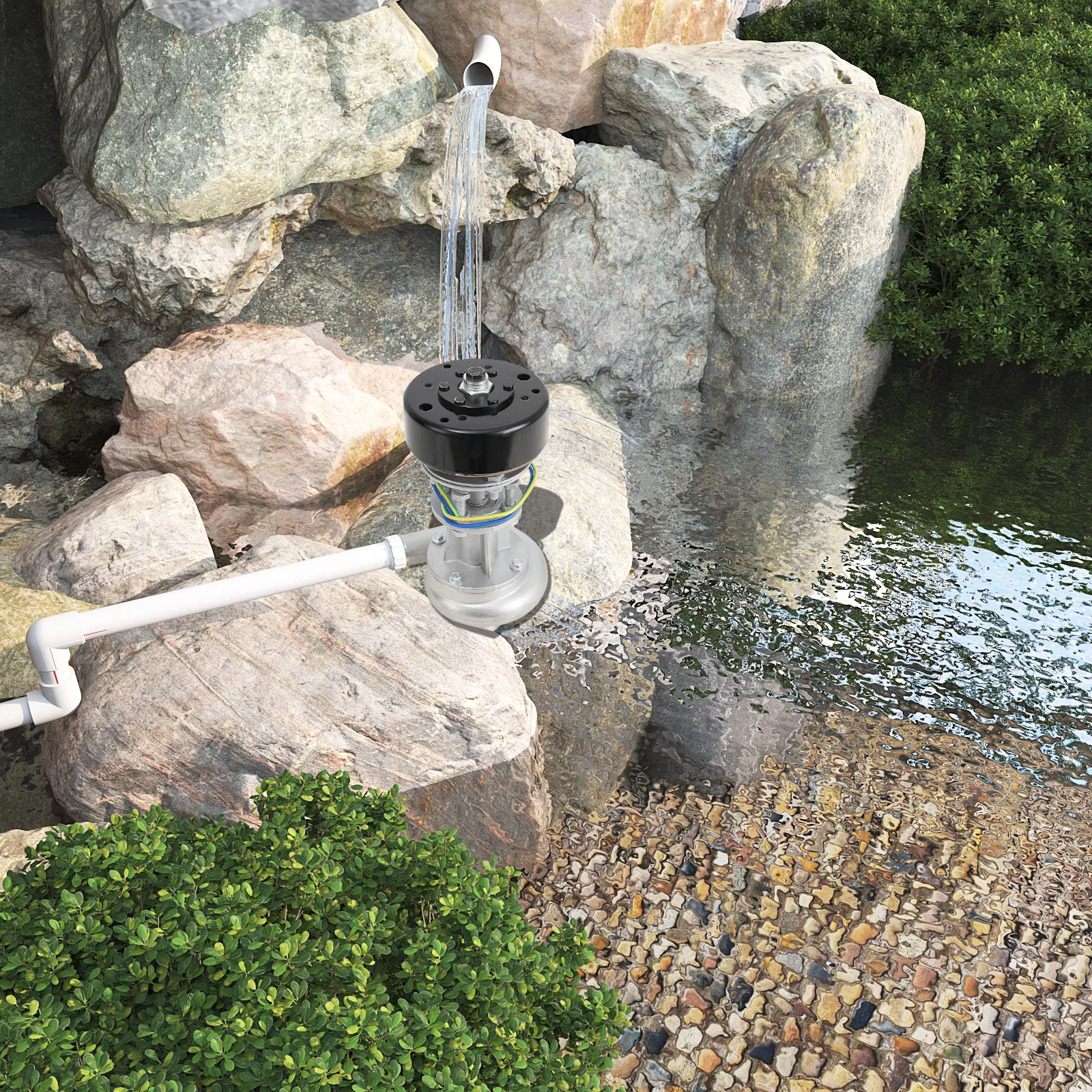

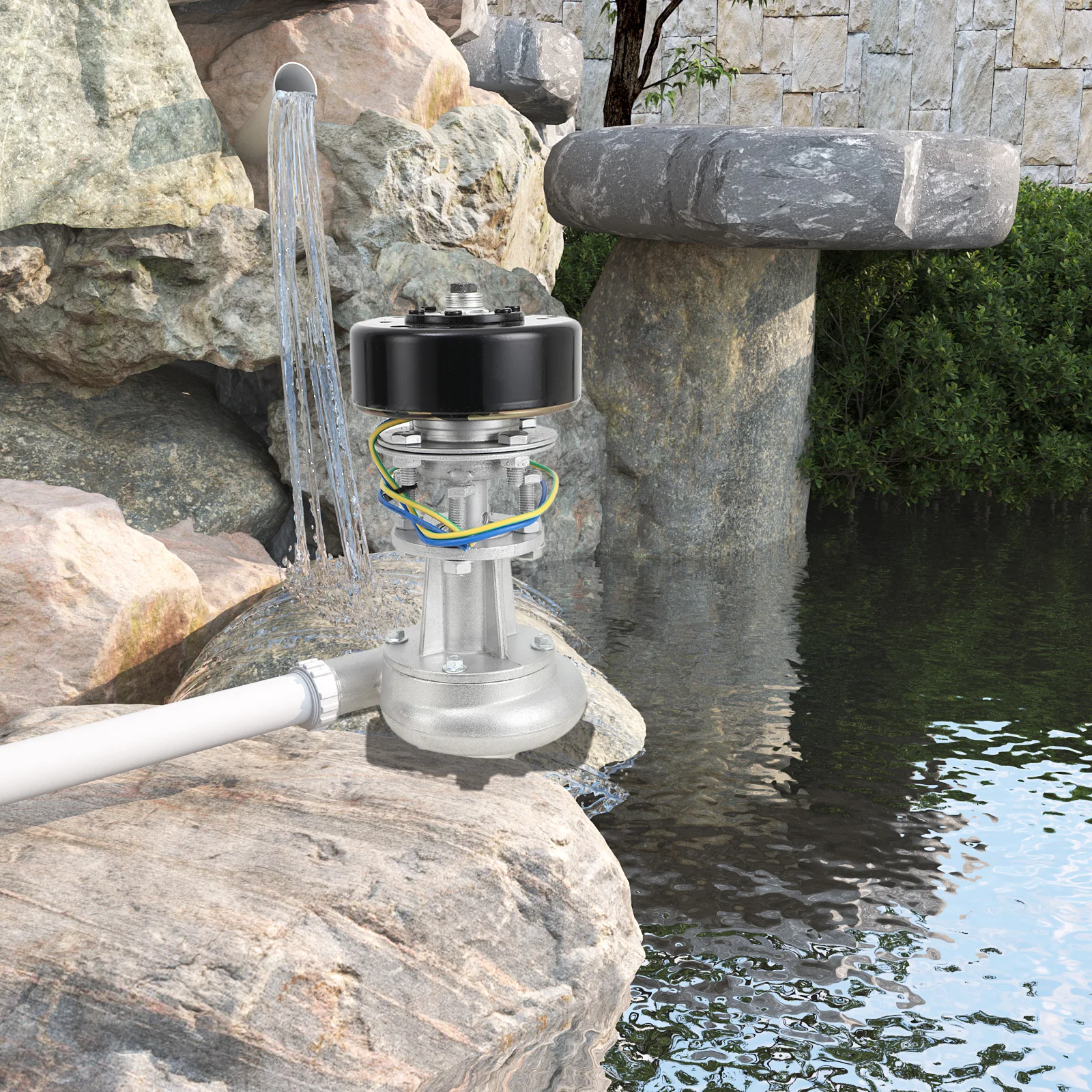

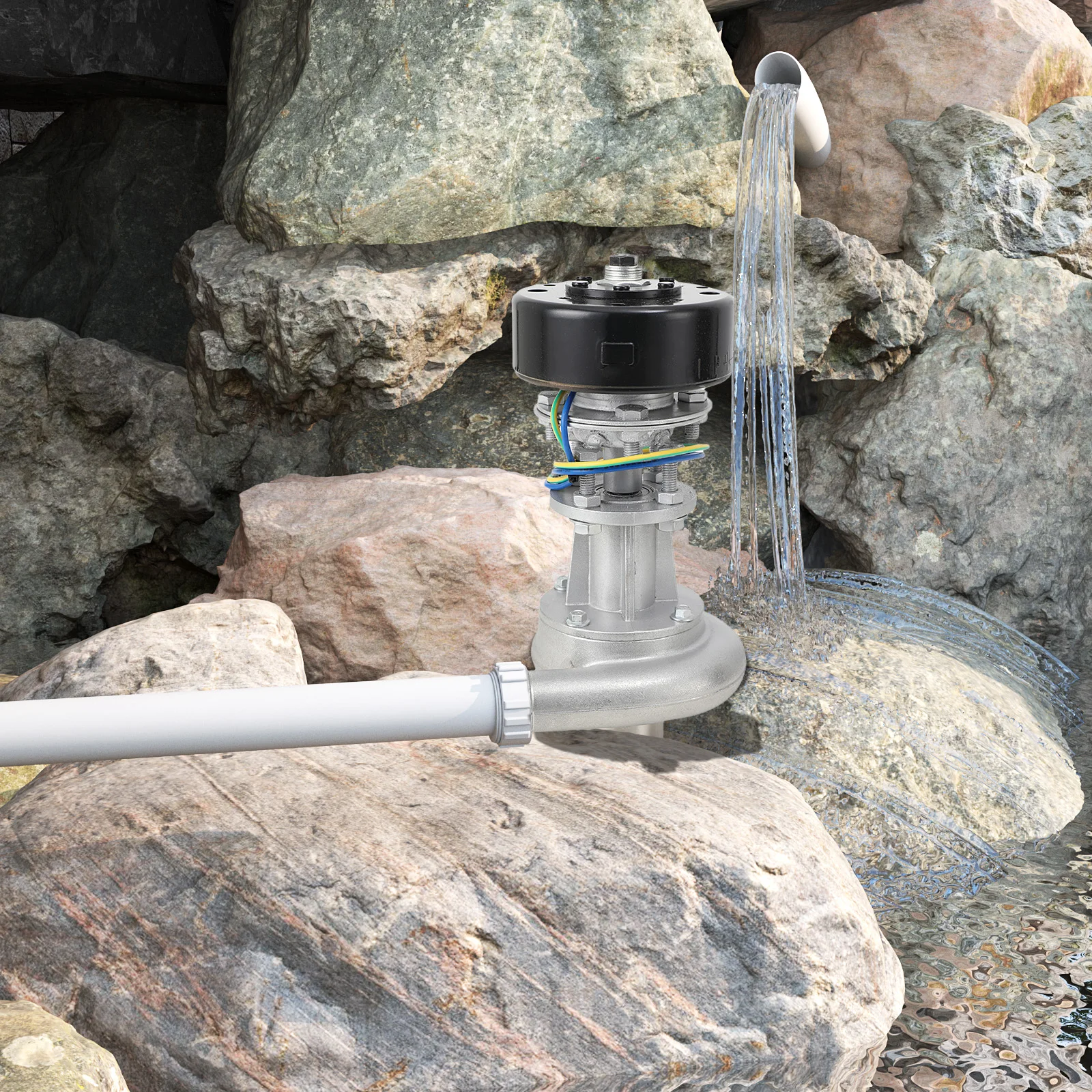

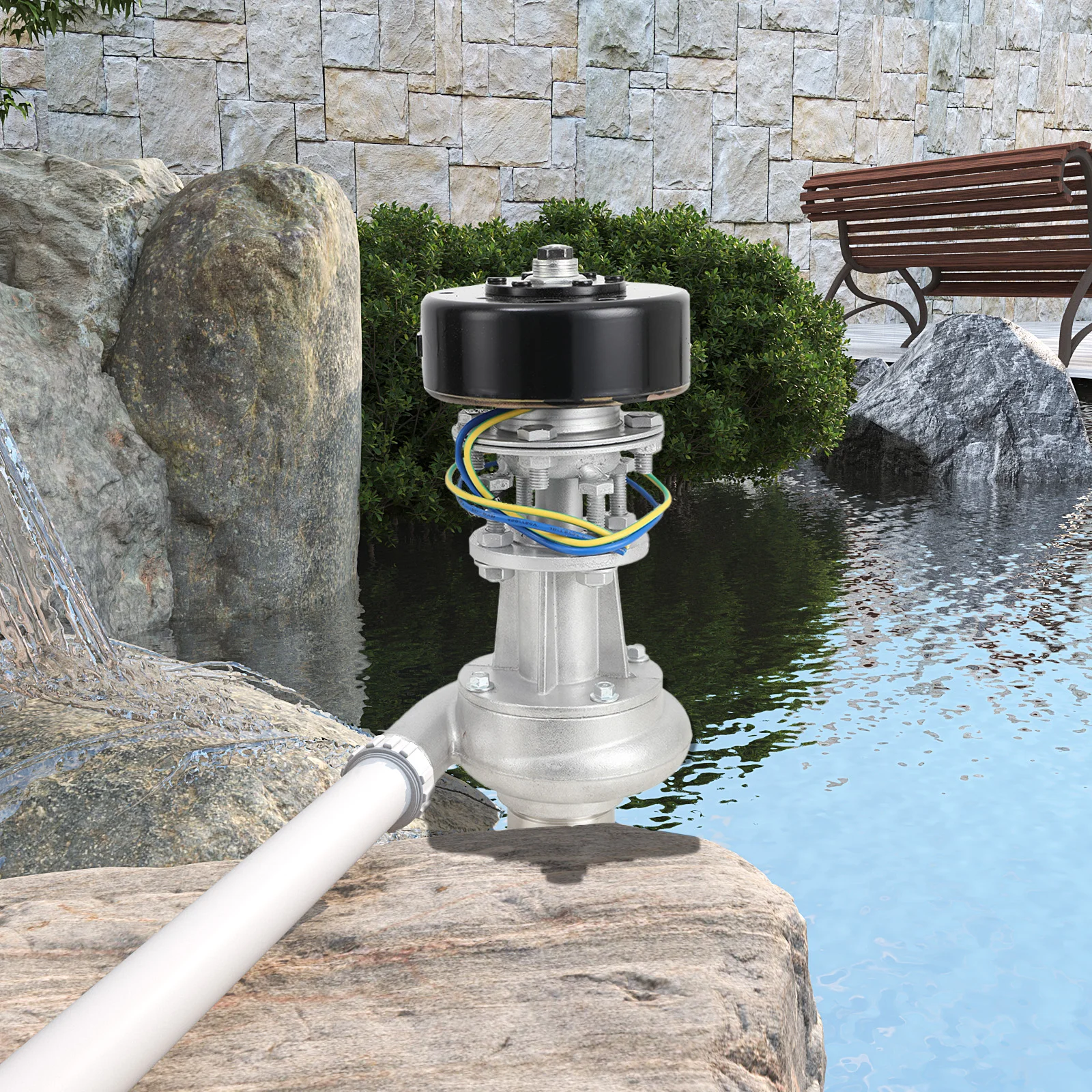

It is suitable for generating electricity where the vertical height drop of the water level is 15m/49ft.

Specification:

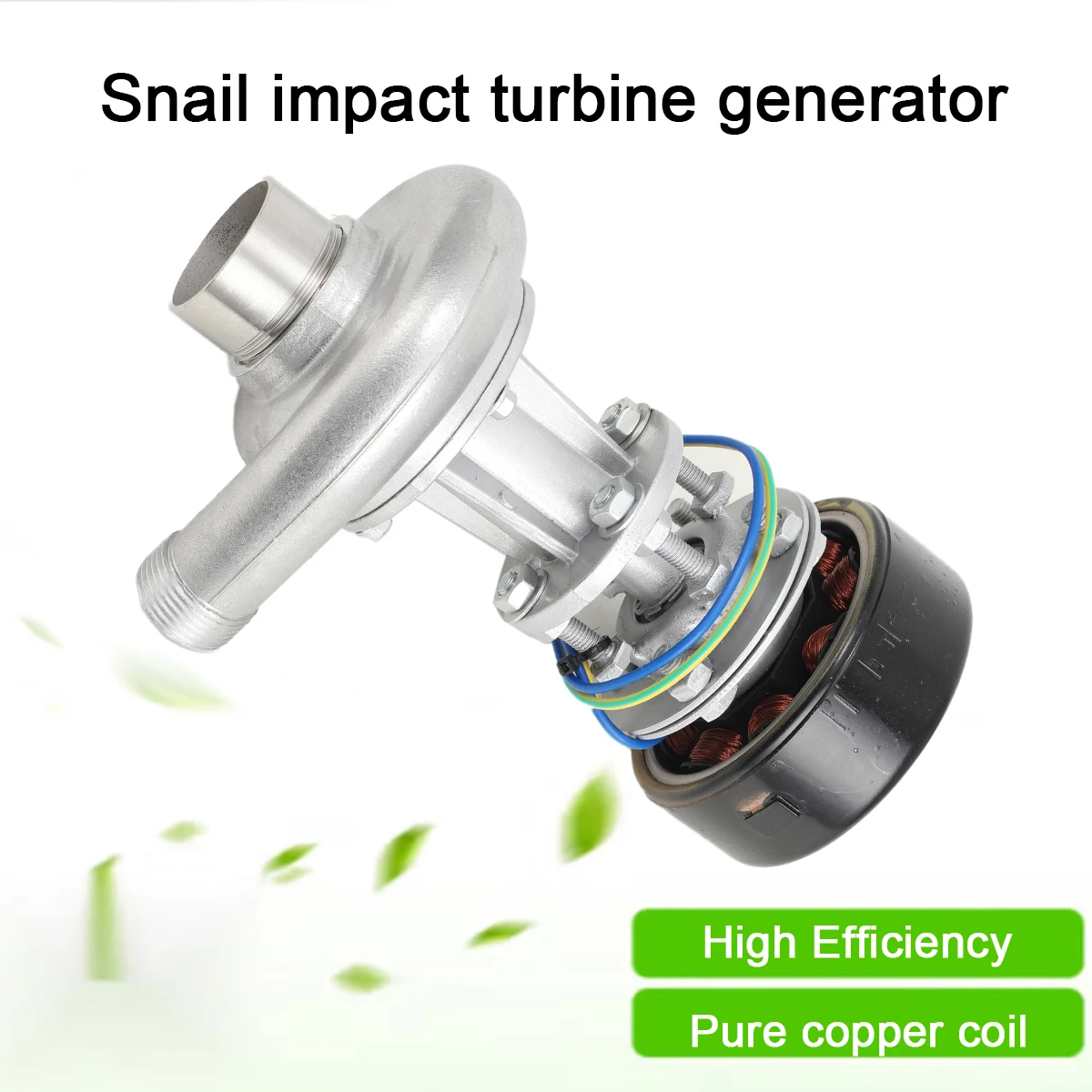

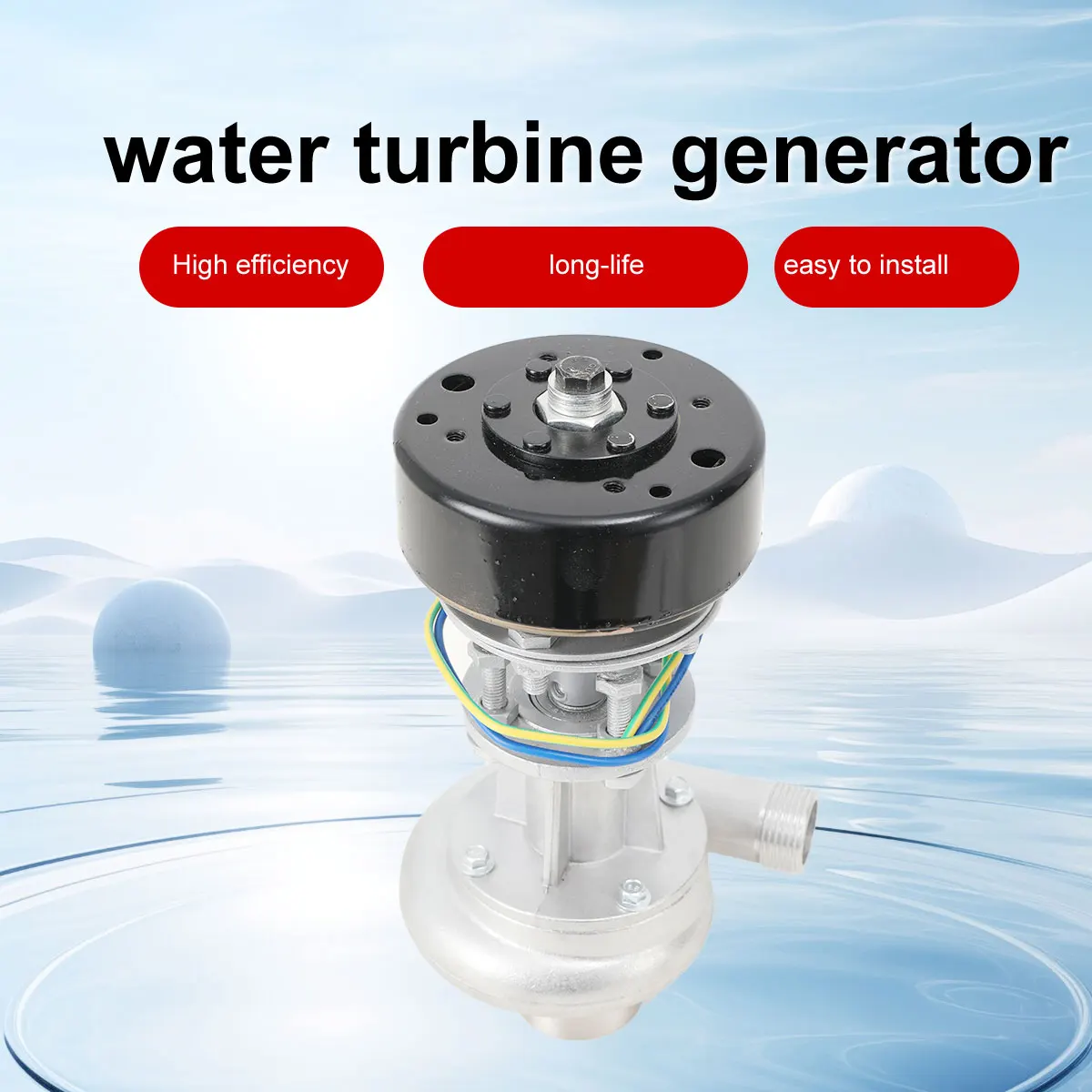

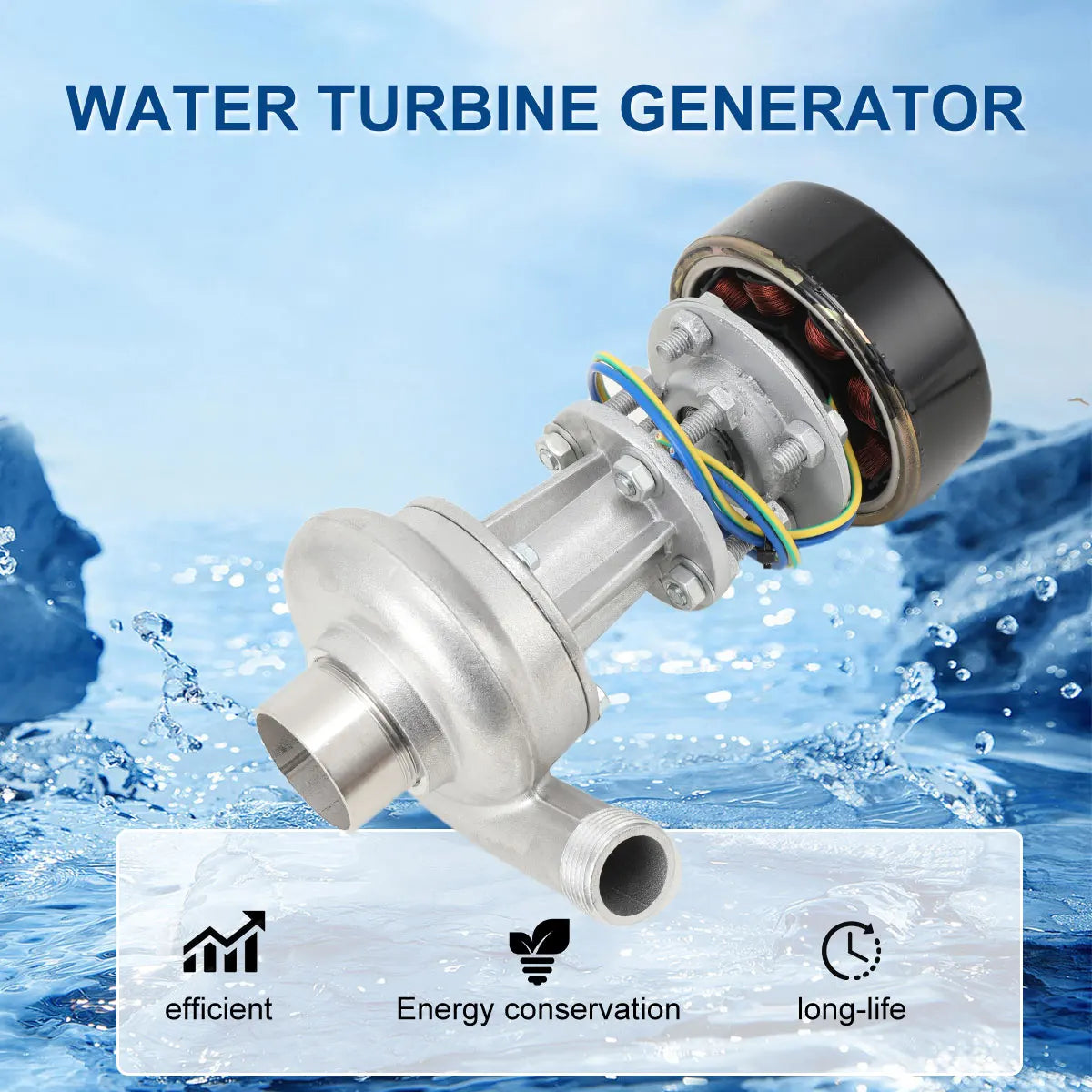

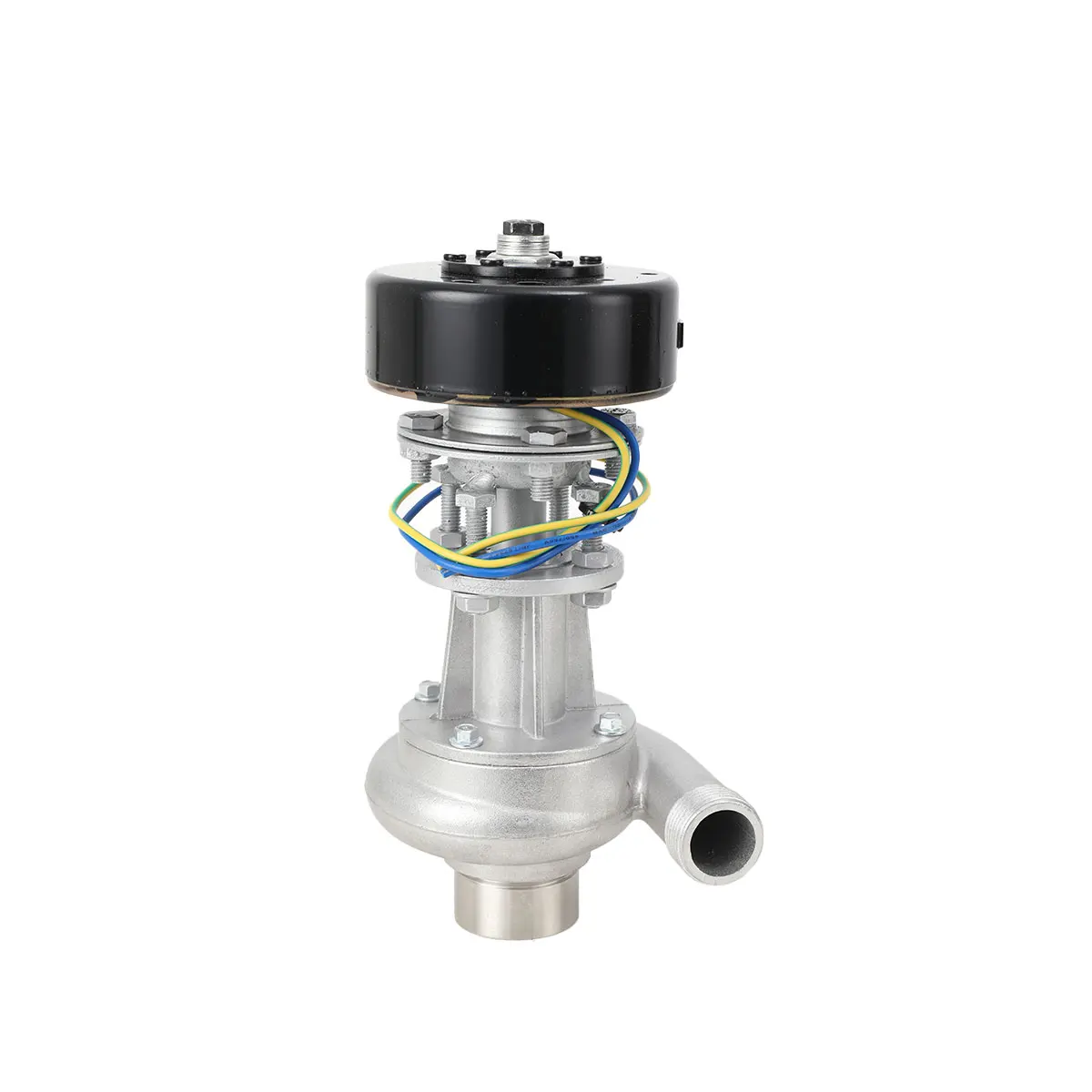

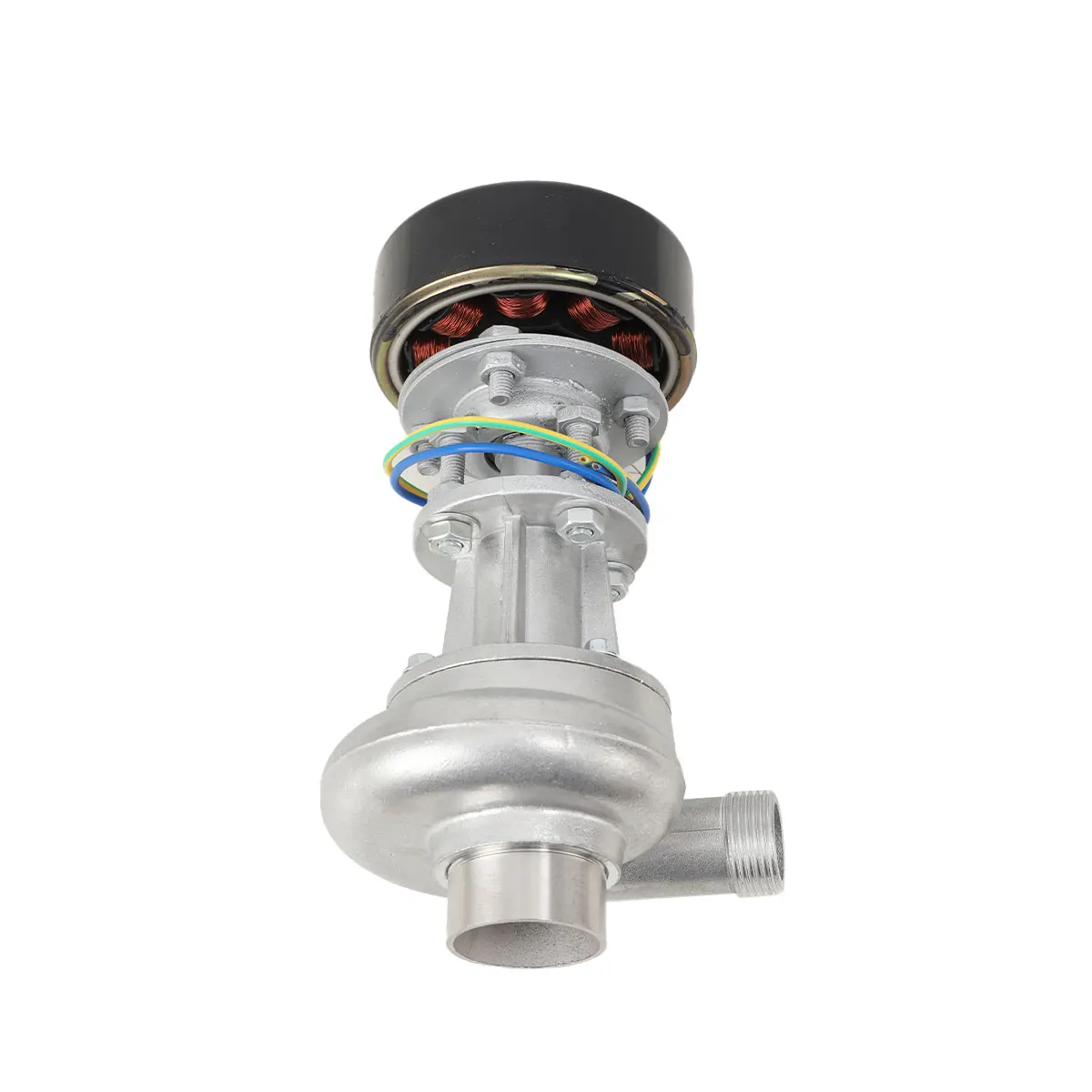

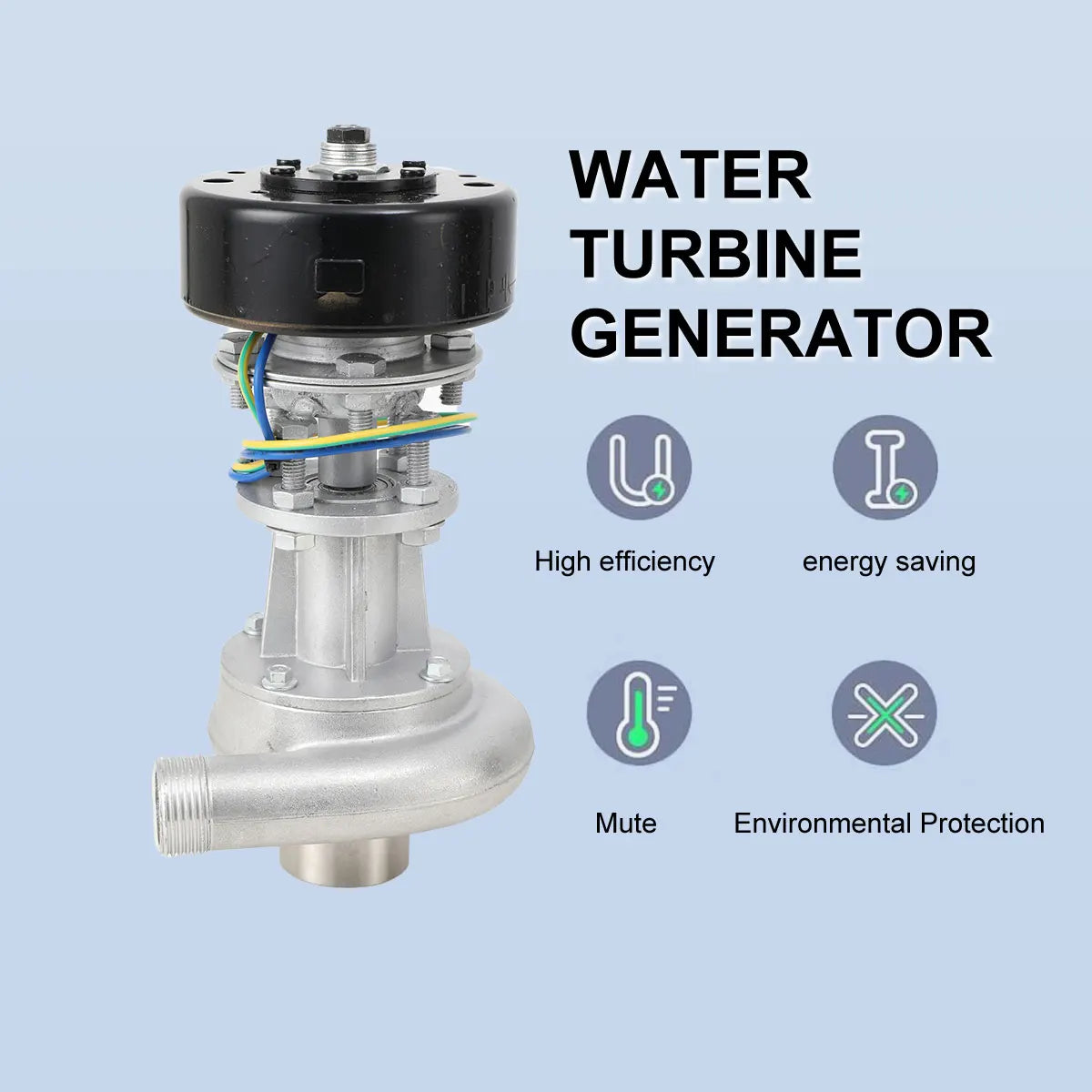

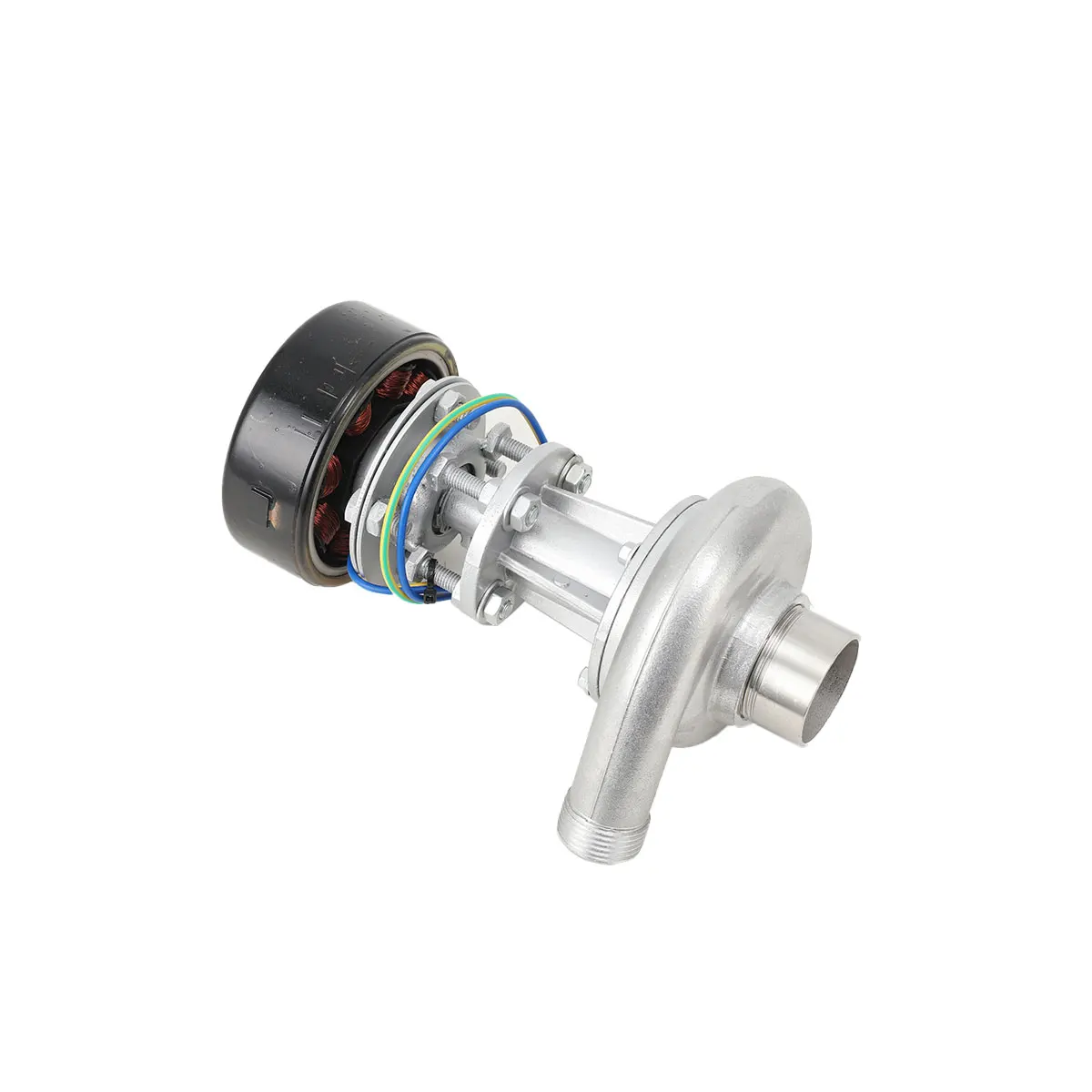

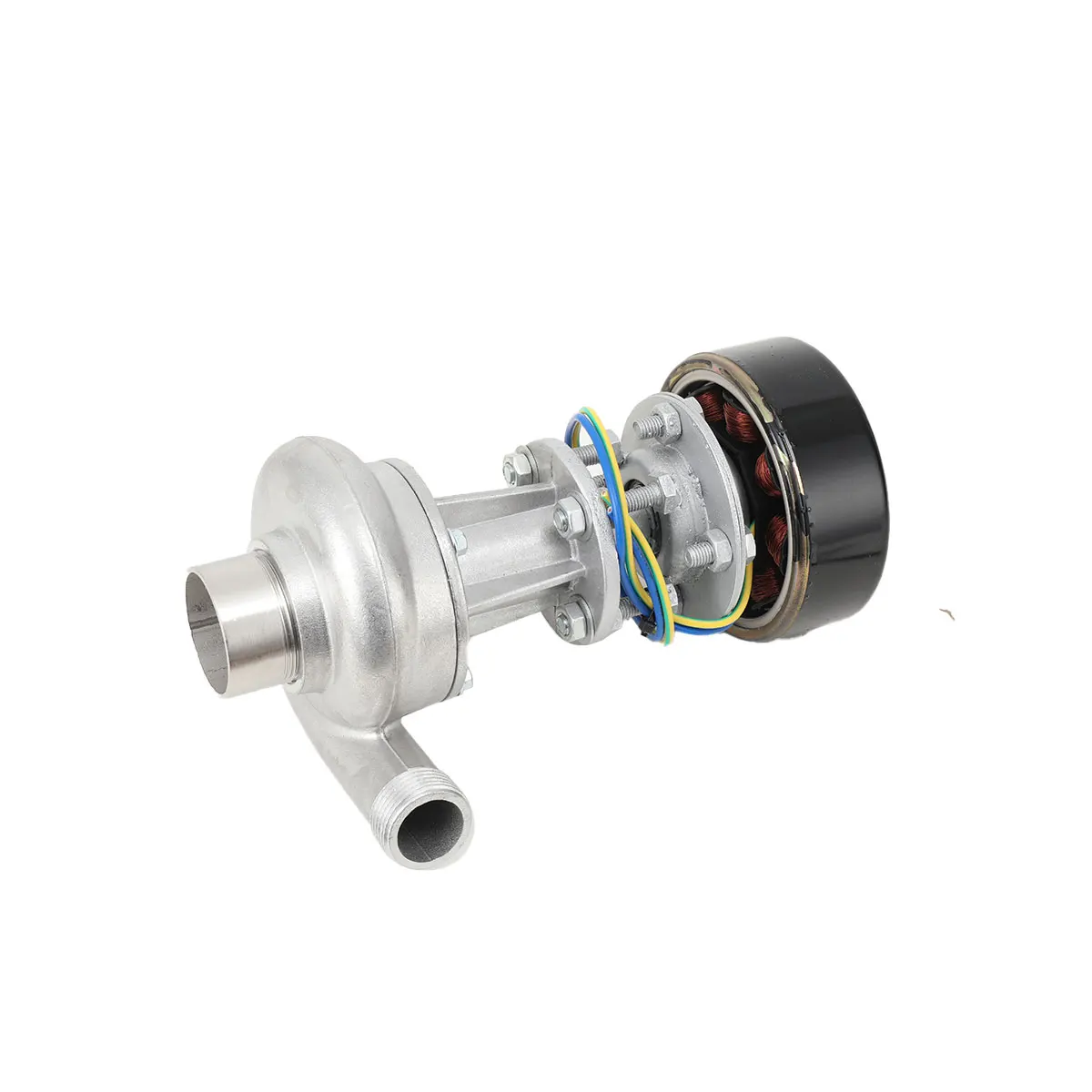

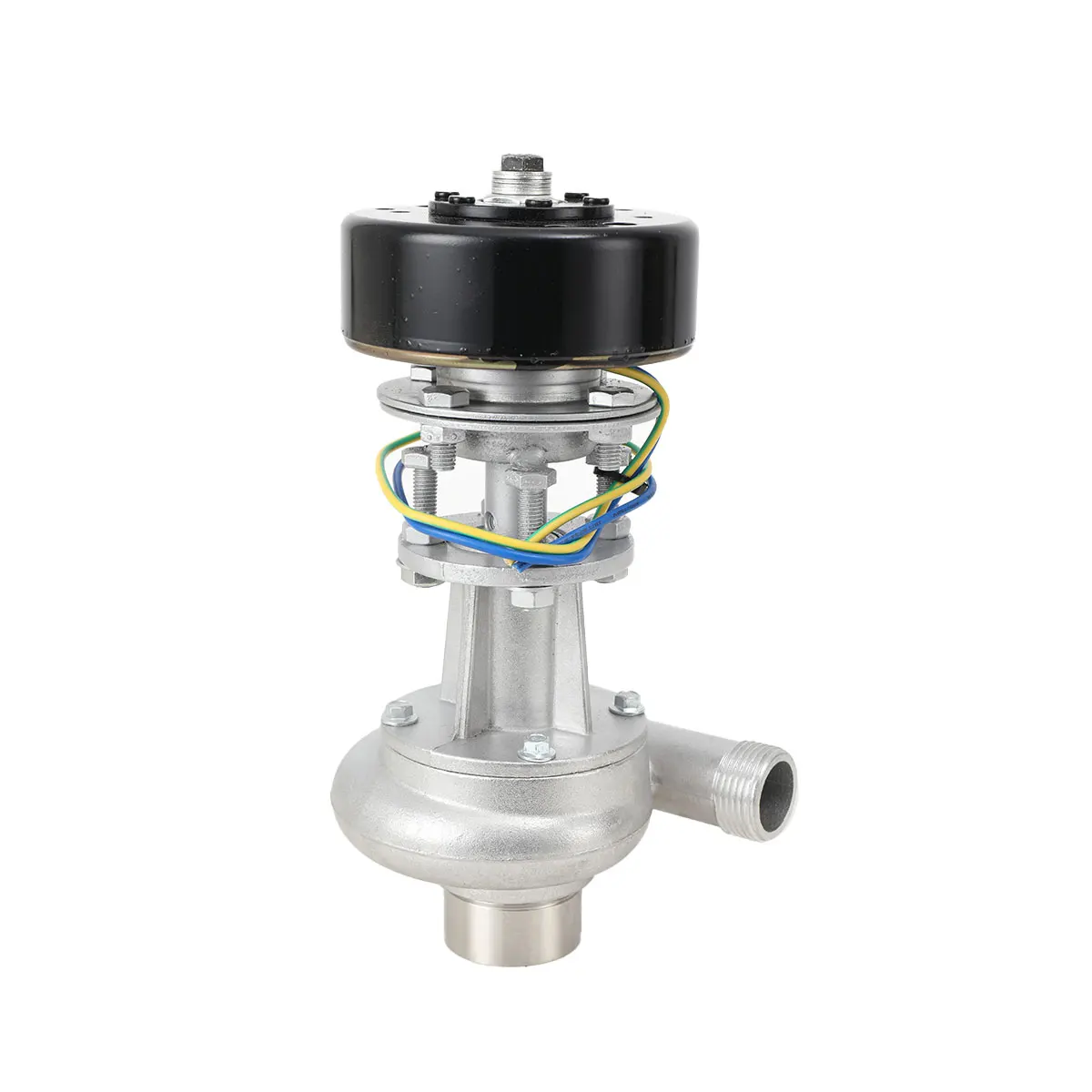

Name: Snail impact water turbine generator
Material: Aluminum Alloy
Color: Silver

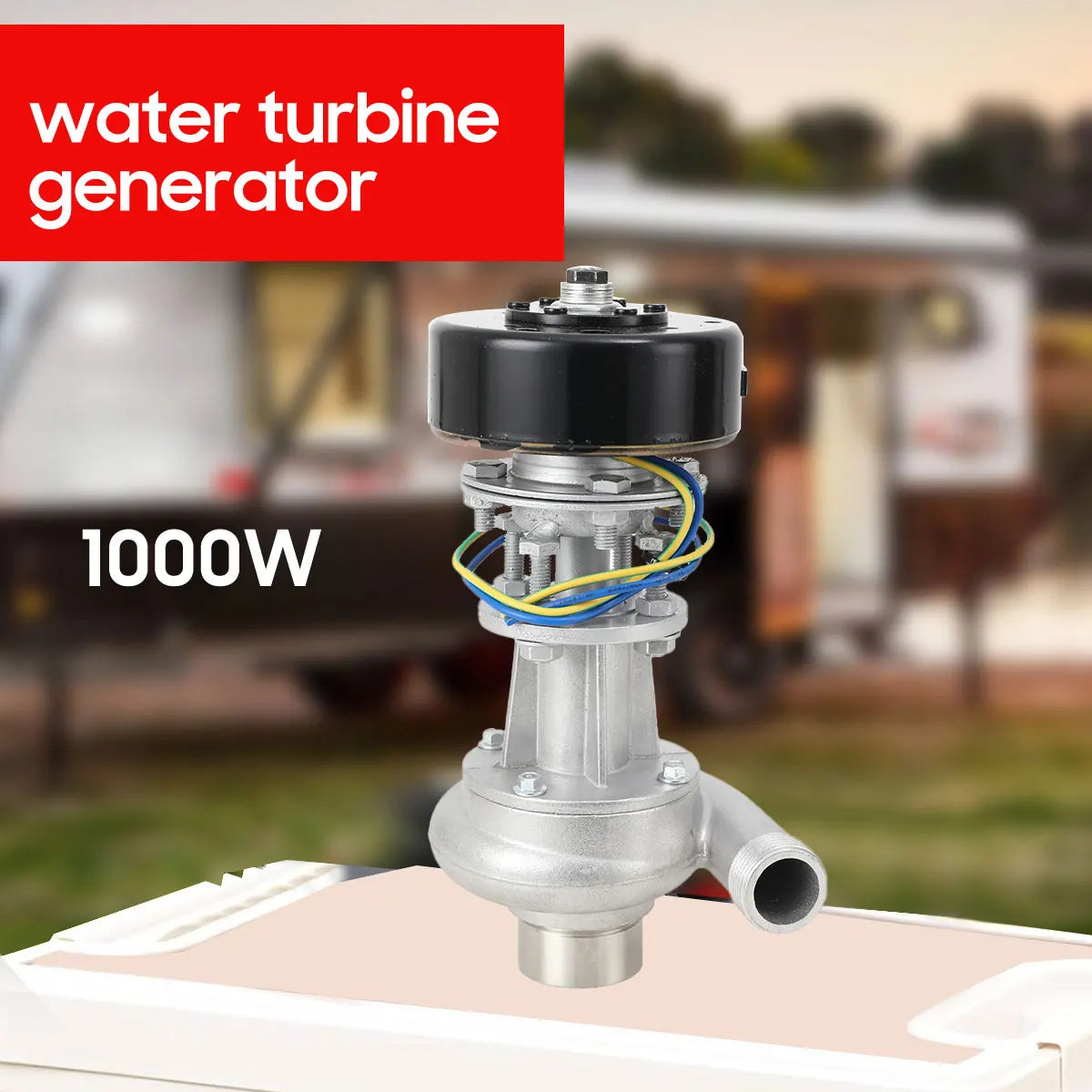

Model: 1000W
Voltage: 110-220V
Speed: 3500 rpm
Head: vertical drop 15 meters
Pipe diameter: 75mm
Water Flow Rate: 10L/s (2.64gal/s)

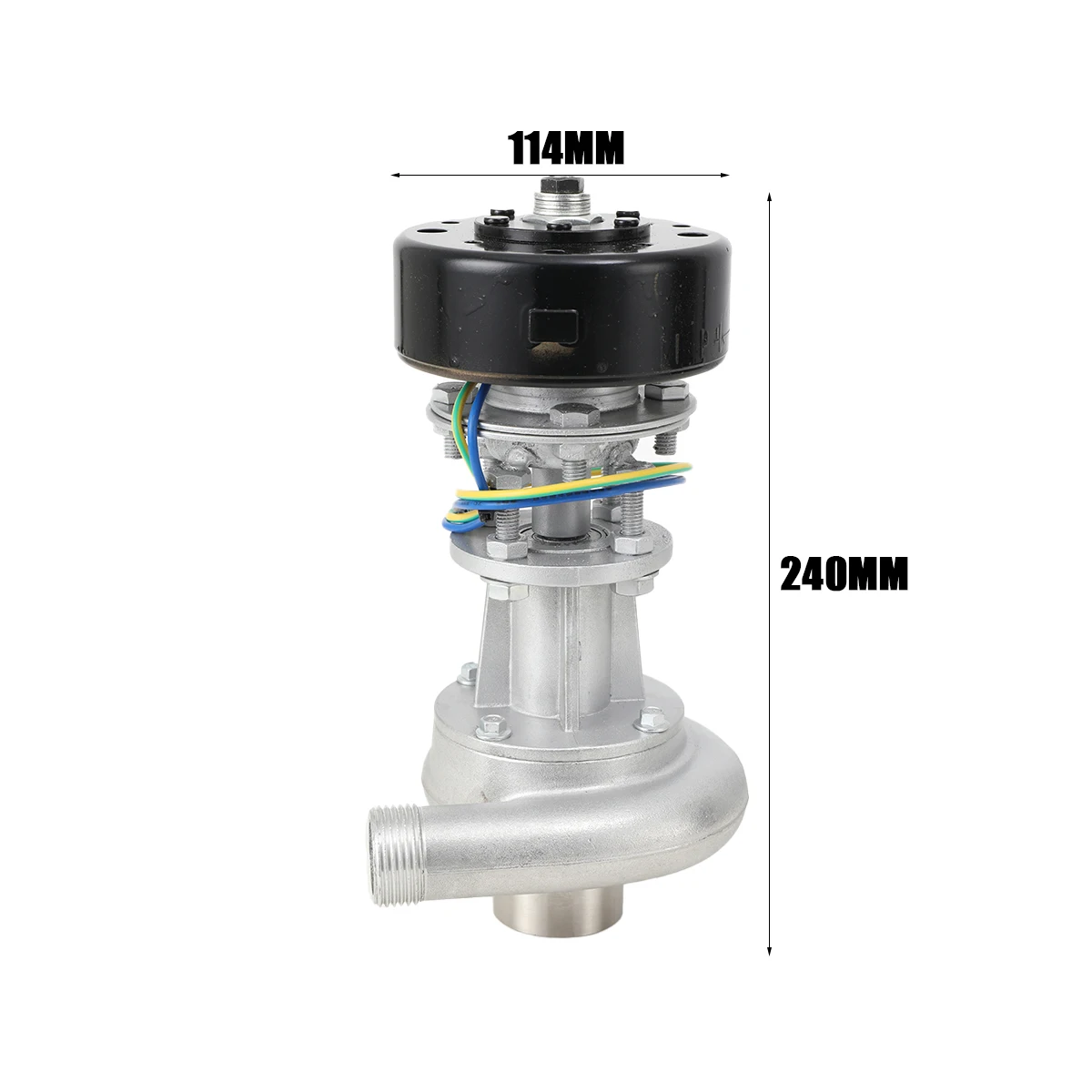

Product Size: 114*240mm/4.5*9.45in
Net Weight: 3kg/6.6lbs

220V1000W micro-water turbine generator installation instructions:
Mainly the generator head, you need to find something to cover the head to prevent the head from rain or water, which will shorten the life of the generator.

The hydraulic requirements of the micro-water turbine generator are a vertical drop height of 15 meters, a pipe diameter of 75 mm, and a water volume of 10 liters per second. Due to the uncertainty of length and height, it is impossible to achieve an accurate data. The vertical height drop is used as the standard. Please see if it can meet the requirements.

Generator maintenance and maintenance, the turbine bearing has a sealing ring to protect the bearing from water. No oil is needed for maintenance. The service life of the sealing ring is 1-3 years. The bearing is also easy to replace, and the generator is removable.

Product Features：

High-quality Material: It is made of high-quality aluminum alloy, which is scratch-resistant, wear-resistant, firm and durable, ensuring a long service life.

High Efficiency: The high power(1000w) and high water flow rate(2.64gal/s) of this mini-hydro generator ensure high power generation efficiency.

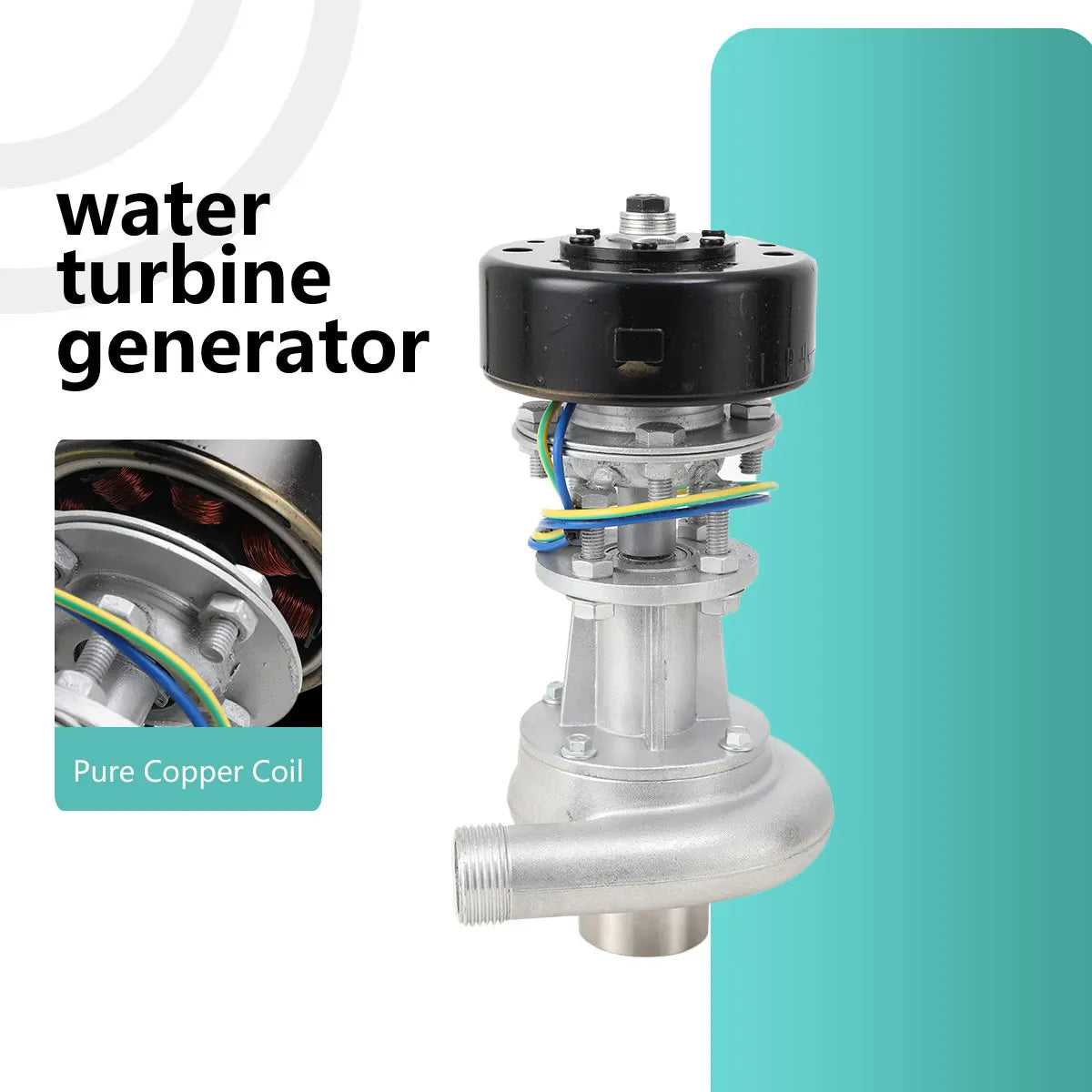

Pure Copper Coil: The pure copper coil has better electrical conductivity and lower resistance, making for better power generation.

Energy Saving: It is environmentally friendly, recyclable, without electricity consumption and saves energy by using pure natural water power to generate electricity.

Highly Versatile: This micro-hydroelectric generator only requires a vertical drop of 15m/49ft, so the water flow in the mountains can meet the power generation needs on a regular basis, which is very practical.

Easy to Use: All you need to do is find the right place, connect the outlet and inlet pipes, and then you can use it immediately, which is very convenient and energy-saving.

Easy to Carry: This micro-hydroelectric generator is compact (114*240mm/4.5*9.45in) and lightweight( 3kg/6.6lbs), making it very portable.

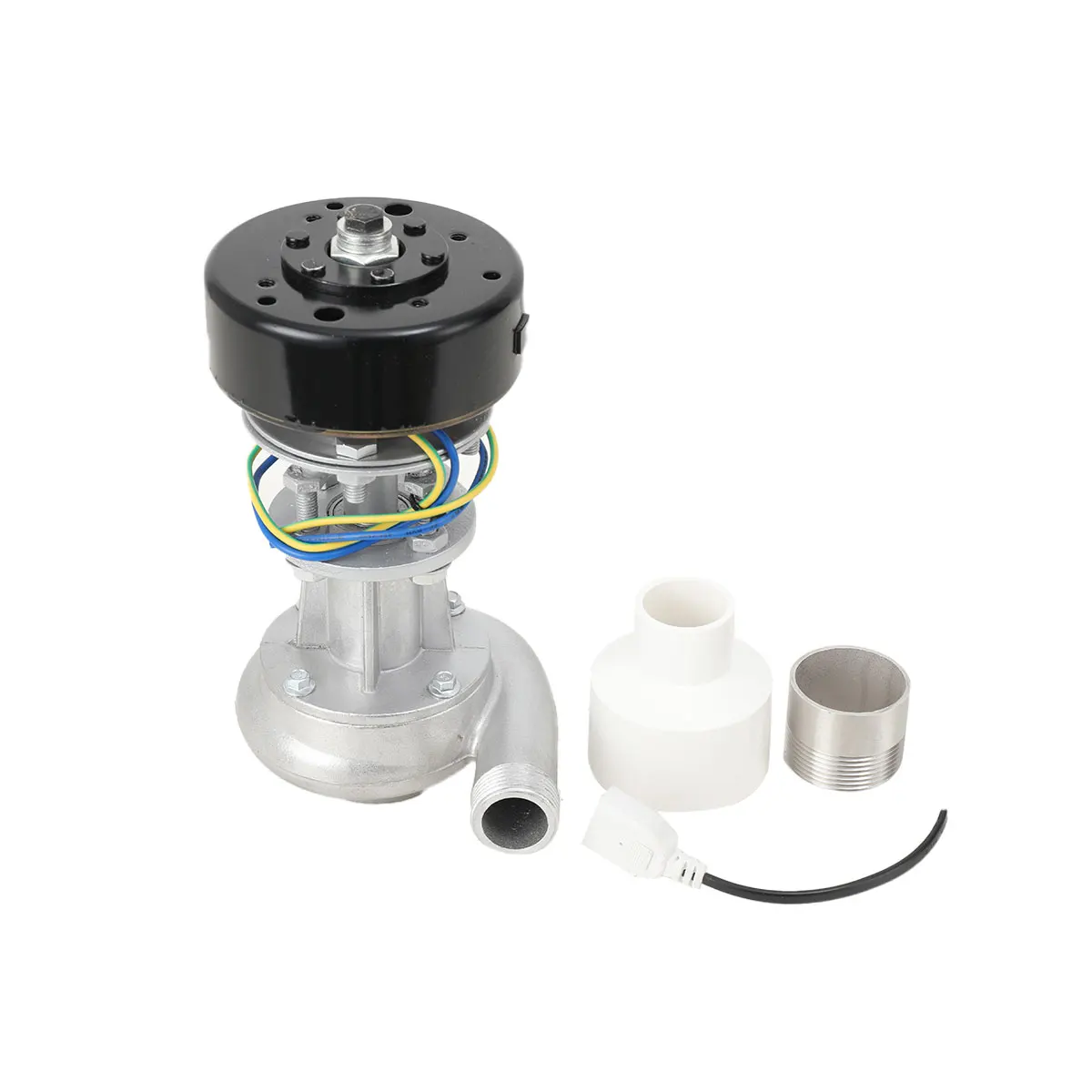

Packaging Contents：

1 x Snail impact water turbine generator

All Accessories for Use
